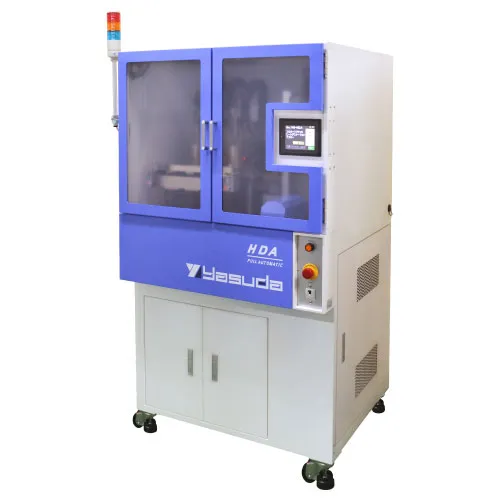

Yasuda No.148-HDA HEAT DISTORTION TESTER (FULL AUTOMATIC)
- This tester is the fully automatic version of the HEAT DISTORTION TESTER.
- The robotic mechanism enables the operator to conduct the usual heat distortion test and VICAT softening temperature test automatically.
- By setting the test specimen to the specimen feeder, the computer software will continuously conduct heat resistance test for a maximum of 120 samples.
Description
| Stations | 3 or 6 Stations |
| Temperature Range | Max. 300°C (Oil Bath) |
| Heating Speed | 120 ± 10°C/hr and 50 ± 5 °C/hr, VICAT: 120 ± 10℃/hr, 50 ± 5°C/hr |
| Bending Stress | JIS･ISO: 1.80MPa (Method A), 0.45MPa (Method B), 8.00Mpa (Method C) ASTM: 1.82Mpa, 0.455Mpa |
| Weight Load | DTUL: Choose 2 weights from initial load 76.5gf to max. 3,210gf *Simultaneous Loading Device included Options VICAT: 10 ± 0.2N, 50 ± 1N BP: 19.6 ± 20N |
| Displacement Measurement | Differential Transformer: Scale 1/1,000 mm, Stroke 4 mm |
| Pressure Foot | DTUL: R3.0 ± 0.2mm Options VICAT: 1.000 ± 0.015mm² BP: Ball Diameter 5mm |
| Support Length | 64 ± 1mm, 100 ± 1mm Option 101.6 ± 0.5mm |
| Refrigerating Device | Water Circulating System, Built-In Refrigerator *For low test start temperature (e.g., 20 to 23°C) |
| Oil Circulation Device | Propeller Type For 3 and 4 Stations: 2 Propellers For 6 Stations: 3 Propellers |
| Test Specimens | 40 pcs × 3 sets (Total 120 pcs) *For T10mm |
| Software | Windows 10 compatible (Included) |
| Accessories | Pressure Foot Adjustment, Specimen Holder |
| Options | Silicon Oil, Glass sample for calibration (fused quartz), Built-in printer, Oil level sensor, Safety door lock, Signal tower light |
| Power Source | Without refrigerator For 3 and 4 Stations: Single-Phase, AC200/220V 20A 50/60Hz For 6 Stations: Single-Phase, AC200/220V 30A 50/60Hz With refrigerator For 3 and 4 Stations: Three-Phase, AC200/220V 20A 50/60Hz For 6 Stations: Three-Phase, AC200/220V 30A 50/60Hz |
| Air Source | 0.5MPa or more |
| Dimensions & Weight (Approx.) | W1,460 × D900 × H1,715mm 450 to 550kg |
